A custom microcontroller board based on Raspberry Pi’s RP2040 microcontroller chip. It is a 2 layer PCB designed using KiCAD 6.0.

Technologies Used

Hardware (Future)

Soldering Iron
Reflow Soldering Hot Plate
Board Components

Software

KiCAD 6.0

Picture Gallery

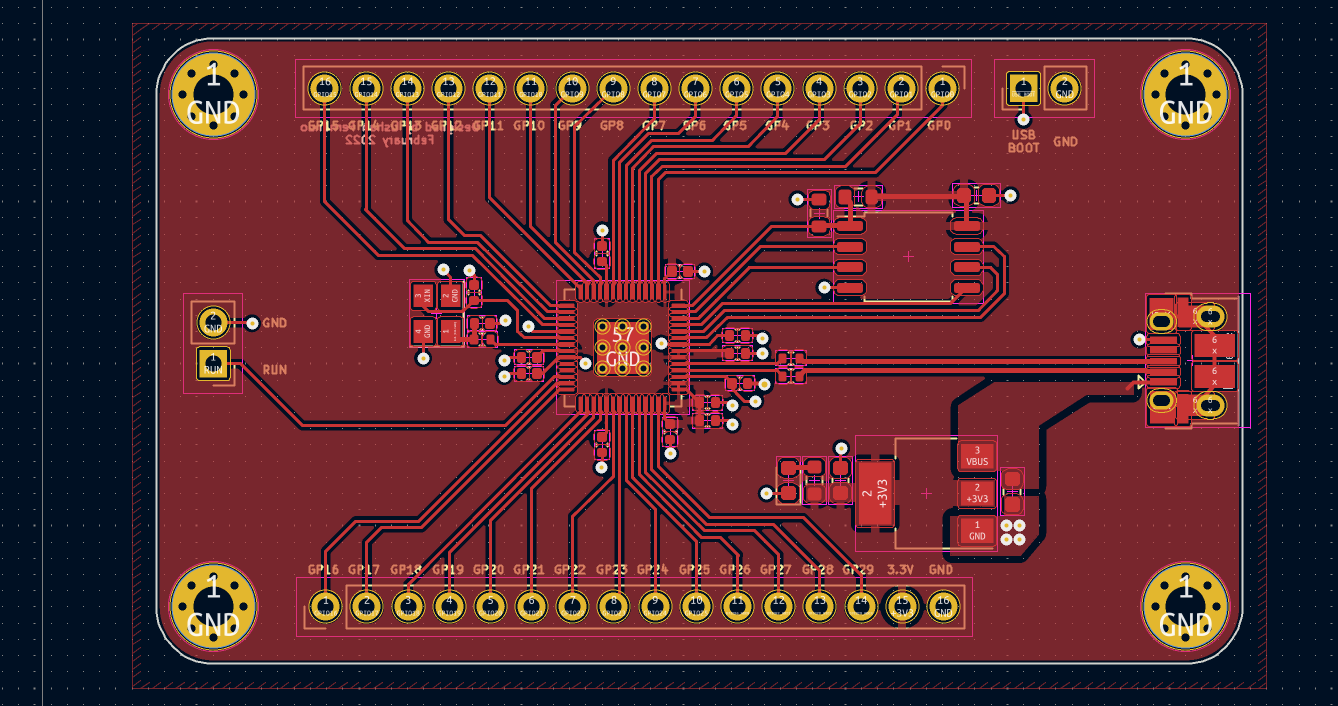

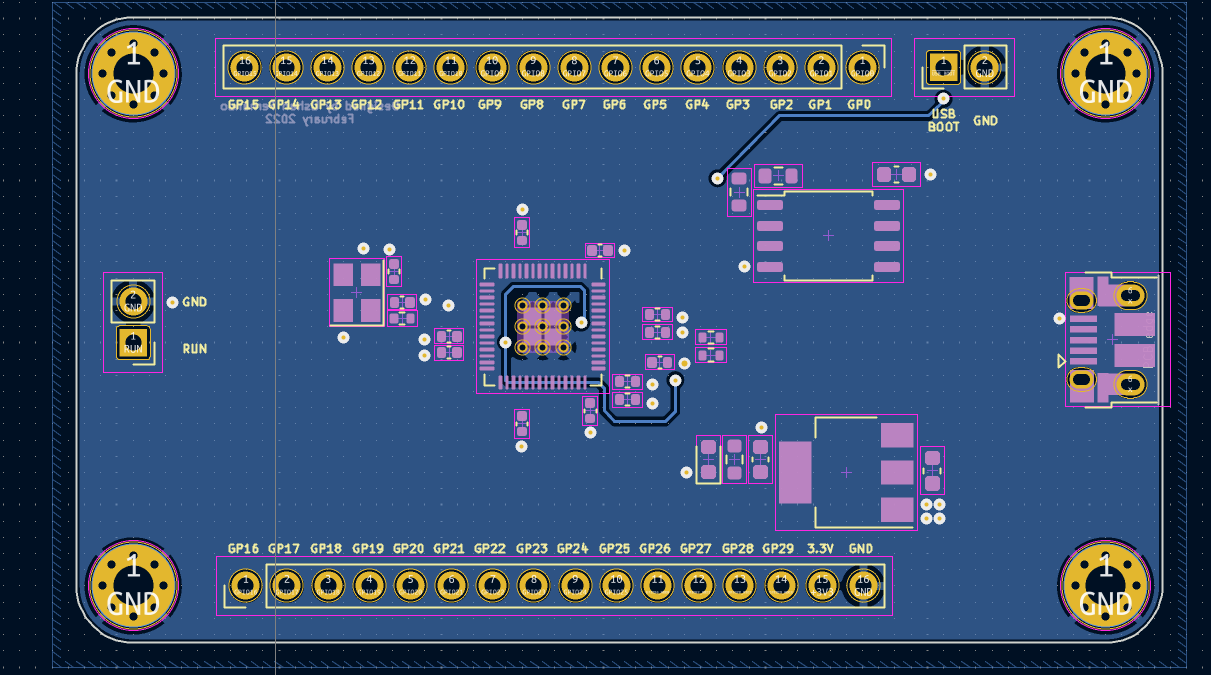

Top and bottom Layer of board designed in KiCAD

Board as seen in KiCAD's 3D viewer

Through this project, I have learned the steps taken in designing a PCB along with proper design procedures such as placement of decoupling capacitors. Furthermore, the project allowed me to improve my skills of obtaining the correct information from datasheets when designing the schematic and choosing appropriate values for the resistors and capacitors. I look forward to getting this board manufactured in the near future.
